1/2" Composite Impact Wrench, Twin Hammer

1/2" Composite Impact Wrench, Twin Hammer
Model #1150 Black / Brush Finish Clutch Parts List - Aircat

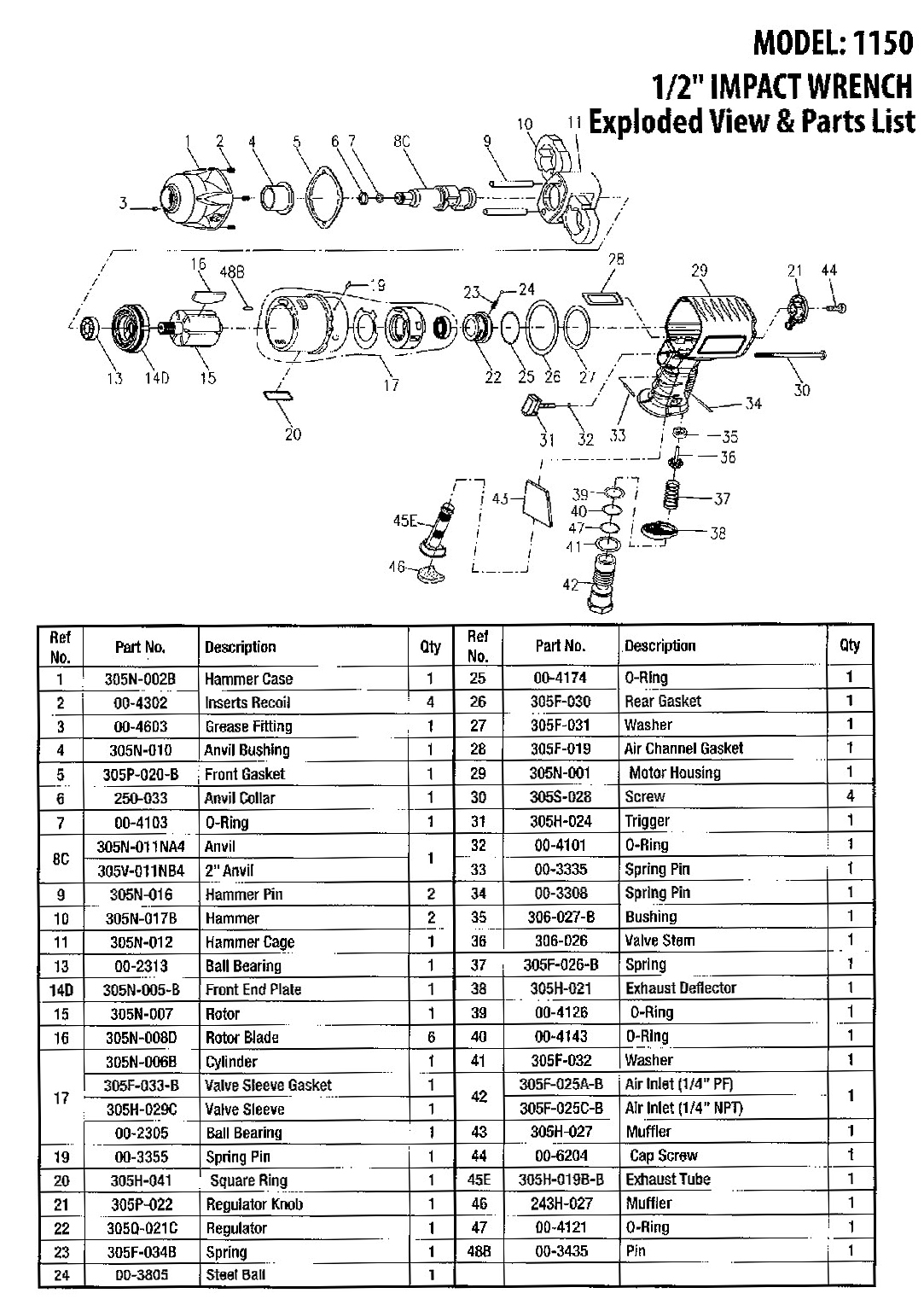

View the Parts Diagram (PDF)

Ref. # Part Number Part Description Qty / Tool Price
1 305N-002B Hammer Case 1 $29.28
2 00-4302 Inserts Recoil 4 $1.63
3 SC100-03 Grease Fitting 1 $1.08
4 305N-010 Anvil Bushing 1 $5.76
5 305P-020-B Front Gasket 1 $1.08
6 SC800-07 Anvil Collar 1 $0.98
7 SC800-08 O-ring 1 $0.98
8 305N-011NA4 Anvil 1 $43.20
8 305N-011NB4 2" Anvil 1 Call for pricing
9 305N-016 Hammer Pin 2 $3.84
10 305N-017B Hammer 2 $17.76
11 305N-012 Hammer Cage 1 $45.12
14 305N-005 Front End Plate 1 $13.92
15 305N-007 Rotor 1 $24.48
16 305N-008D Rotor Blade 6 $2.98
17 305N-006B
305F-033-B
305H-029C
SC800-24

Cylinder
Valve Sleeve Gasket
Valve Sleeve
Ball Bearing
1
1
1
1
$68.40


$6.95



20 305H-041 Square Ring 1 $0.98
21 305P-022 Regulator Knob 1 $3.60
22 305Q-021C Regulator 1 $8.64
24 SC-100-15 Steel Ball 1 $0.98
25 SC-100-16 O-Ring 1 $0.98
26 SC-100-17 Rear Gasket 1 $0.98
27 SC-100-18 Washer 1 $1.44
28 SC-100-19 Air Channel Gasket 1 $0.98
29 305N-001 Motor Housing 1 $48.38
30 305S-028 Screw 4 $1.08
31 SC-100-22 Trigger 1 $2.16
32 SC-100-23 O-Ring 1 $0.98
33 SC-100-24 Spring Pin 1 $0.98
34 SC-800-19 Spring Pin 1 $0.98
35 SC-200-30 Bushing 1 $1.90
36 SC200-31 Valve Stem 1 $1.44
37 SC100-25 Spring 1 $0.98
38 SC100-26 Exhaust Deflector 1 $1.44
39 SC100-27 O-Ring 1 $0.98
40 SC100-28 O-Ring 1 $0.98
41 SC100-29 Washer 1 $1.44
42 SC100-30 Air Inlet (1/4" NPT) 1 $8.28
43 305H-027 Muffler 1 $1.08
44 00-6204 Cap Screw 1 $1.08
45 305H-019B Exhaust Tube 1 $1.63
46 243H-027 Muffler 1 $0.98
47 SC100-31 O-Ring 1 $0.98
48B 00-3435 Pin 1 $1.08
